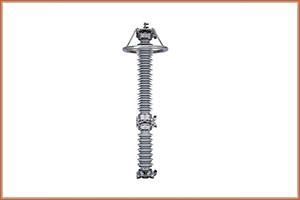

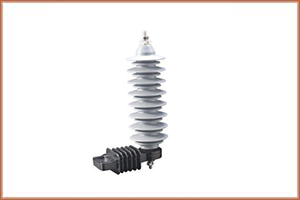

Station Class Type Lightning Arrester
Station Class Type Lightning Arrester

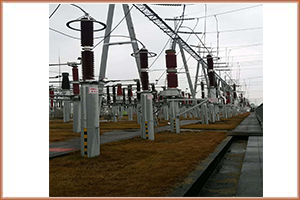

Station Class Type Lightning Arresters are high-performance surge protection devices used in electrical substations, power stations, and high-voltage transmission systems. These arresters protect transformers, switchgear, circuit breakers, and other costly electrical equipment from lightning surges and switching overvoltages. In India, station class lightning arresters are widely used in power distribution networks, industrial plants, and utility substations for reliable electrical safety and uninterrupted power supply.
These lightning arresters are manufactured using high-quality metal oxide varistors (MOV) and polymer or porcelain housing to ensure superior insulation, long service life, and excellent surge handling capability. Station class arresters are designed for heavy-duty applications where high energy discharge capacity and maximum protection are required. They are suitable for indoor and outdoor installations in harsh environmental conditions.
Station Class Type Lightning Arrester Manufacturer & Supplier in India
National Power Industries is a leading manufacturer and supplier of high-performance Station Class Type Lightning Arresters in India. Designed for high-voltage electrical substations, power generating stations, and transmission lines, our station class arresters provide maximum protection to costly power equipment like transformers, switchgear, and circuit breakers against lightning surges and switching overvoltages.
Built with advanced Metal Oxide Varistor (MOV) technology and high-grade Polymer or Porcelain Housing, our arresters deliver exceptional surge protection, high energy discharge capability, and long-term reliability even in harsh environmental conditions.
What is a Station Class Lightning Arrester?
A Station Class Lightning Arrester is a heavy-duty surge protection device used in high-voltage electrical distribution and transmission systems (typically above 33kV up to 765kV).
Unlike Distribution Class or Intermediate Class arresters, Station Class arresters offer:
- Highest Energy Handling Capacity: Capable of discharging extreme lightning strokes and heavy switching surges.
- Low Protection Levels: Ensures lower residual voltage to protect critical and expensive sub-station equipment.
- Heavy-Duty Duty Cycle: Designed to handle multiple consecutive impulse current surges without failure.
Key Features & Benefits
- Advanced MOV Technology: Gapless zinc oxide varistors ensure fast response time (nanoseconds) and low protective levels.
- Durable Weatherproofing: Available in high-creepage Porcelain and hydrophobic Polymer (Silicone Rubber) housings to prevent flashovers in heavily polluted coastal/industrial areas.
- High Energy Absorption Capability: Engineered to absorb high thermal stress during line discharge events.
- Pressure Relief Device: Integrated safety mechanism prevents explosive shattered housing in case of severe overloads.
- Maintenance-Free & Long Life: Superior sealing technology prevents moisture ingress, ensuring decades of hassle-free performance.
Technical Specifications Overview
| Parameter | Specification / Standard |
|---|---|
| Arrester Class | Station Class (IEC / IS Certified) |
| Voltage Rating | 11 kV to 400 kV+ |
| Nominal Discharge Current | 10 kA / 20 kA |
| Resistor Material | Zinc Oxide (ZnO) / Metal Oxide |
| Housing Material | Polymeric (Silicone Rubber) / High-Strength Porcelain |
| Applicable Standards | IEC 60099-4 / IS 3070 |
| Application Area | EHV Sub-stations, Power Plants, Industrial Utilities |
Applications of Station Class Surge Arresters
- Electrical Substations & Switchyards: Protecting main power transformers, busbars, and circuit breakers.
- Power Plants: Hydro, thermal, solar, and wind power generation plants.
- High-Voltage Transmission Lines: Guarding grid connection points against atmospheric lightning strikes.
- Heavy Industrial Utilities: Steel plants, refineries, and manufacturing hubs with heavy inductive loads.
Why Choose National Power Industries?
- Proven Engineering Excellence: Decades of expertise in manufacturing transmission line and sub-station safety equipment.
- Strict Quality Control: Every unit undergoes high-voltage impulse and leakage current testing as per international standards.
- Custom Customization: Tailored creepage distances and structural dimensions to meet client grid specifications.
- Pan-India Delivery & Export Support: Fast turnaround times for public utility contracts and industrial clients.
Frequently Asked Questions (FAQs)
Q1. What is the difference between Station Class and Distribution Class Lightning Arresters?
Station Class arresters are designed for high-voltage sub-stations (>33kV) requiring the highest energy discharge capabilities to protect critical assets like power transformers. Distribution Class arresters are smaller, used on distribution poles and lower voltage networks (<33kV) with lower energy handling requirements.
Q2. Which housing material is better: Polymer or Porcelain?
Polymer (Silicone Rubber) housings are lightweight, shatter-proof, and offer superior hydrophobic performance in wet or polluted areas. Porcelain housing offers high mechanical rigidity and long historical reliability. Both options are supplied by National Power Industries depending on site conditions.
Q3. What standard do National Power Station Class Arresters follow?
Our arresters are designed and tested according to IEC 60099-4 and IS 3070 standards, ensuring global compliance and safety.
Get a Quote Today!
Need high-performance Station Class Lightning Arresters for your substation project? Contact National Power Industries for technical specifications and direct pricing.
Call Us:+91 98795 59725, +91 99795 59725
Email Us:jayant1885@gmail.com
Address: 1885 Pada Pole, Ahmedabad, Gujarat, India
